STANDARD STRUCTURED POLYCARBONATE SHEETS

Standard Sheets 4-16 mm

Polygal Standard – Wide range of applications (Thicknesses 4, 6, 8, 10, 16 mm)

Standard Sheets 4 – 16 mm (1/4″ – 5/8″)

Combines endless design possibilities with many important advantages:

  • Excellent thermal insulation
  • Highly flexible, yet virtually unbreakable
  • Lightweight and easy to install
  • Rigid sheet structure provides extra strength under wind and snow loads. To see sheet performance under loads, go to “Support / Wind Load Charts”.

Standard Sheets feature a UV protective layer to protect against yellowing, and are covered by a 10 Year Warranty against breakage and yellowing (6 mm and higher).

  • Recommended Uses: Covering of medium span structures where excellent thermal insulation is required.

Technical Specifications:

StructurePCSS6
Thickness (mm)4681016
Weightg/m²8001300150017002700
lb / ft²0.160.270.310.350.55
Standard widthmm980, 1050, 1200, 1220, 1250, 2100
inch48″72″
Minimum radius for cold bending archesmm0.71.051.41.752.8
inch2′ 3″3′ 5″4′ 7″5′ 9″9′ 2″
U-Factor by ASTM C177W/m²·°C)3.93.63.33.02.3
Btu /hr·ft2·°F 0.690.630.580.530.41

Optical Specification :

Thickness
(mm)
Light Transmission (%) by ASTM D 1003
ClearNGL*ICEbronzesnowgreygreenredorangeblueturquoiseyellow
48232422530302055305270
68016
8802512
10794212
16723516

  Polygal Standard [525KB] Get Adobe® Reader

SPECIAL STRUCTURED POLYCARBONATE SHEETS

Titan – Reinforced Stiffness, thicknesses 10, 16 mm

Titan Sky 10-16 mm (3/8″ – 5/8″)

Titan's internal cross-brace structure

Titan’s internal cross-brace structure makes these sheets twice as strong and stiff as the equivalent standard Polycarbonate sheets,without extra weight. Titan sheets provide extra strength under heavy loads and difficult climatic conditions, without extra cost.

  • Reinforced sheet performance without additional weight, compared to 16mm Standard Sheets
  • Especially effective under snow loads, hail, tornadoes and other extreme weather conditions – To see sheet performance under loads, go to “Support / Wind Load Charts”.
  • Available in super-strength configurations for especially extreme weather conditions (by special order)
  • Available with Primalite and Silhouette special coatings
  • Recommended Uses: Stadiums, sports facilities, greenhouses and where heavy load support is required.

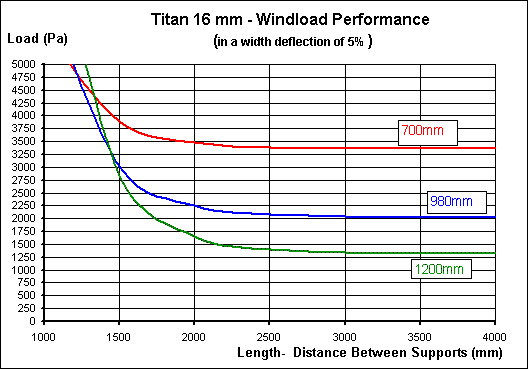

Technical Specifications

ProductStructureThickness
(mm)
Whight
g/m
(lb/ft 2 )
Standard
width
(mm)
Minimum radius
for cold bending
arches, m ( inch)
U-factor
ASTM C177
TNO(W/m 2 X C)
(Btu / (h x ft 2 x f 2 ))
TitanTitan - PCT16TMB101700
(0.35)
1200 2100
(48″)
1.75 (59″)2.5 (0.45)
162700
(0.55)
2.8 (92″)2.2 (0.36)
Titan SkyTitan Sky - TSK16A162500
(0.51)
1050 1200
(47.25″)
2.8 (92″)2.08 (0.41)

Optical Specification:

Thickness  (mm)Light Transmission by ASTM D1003 (%)
ClearNon-GlearIceBronze
106225 3242
1662 25 3242

Selectogal (RFX) – Reflection of Sun Radiation, thickness 16 mm

Selectogal (RFX) 16 mm (5/8″)

Selectogal (RFX)eSelectogal (RFX)e

Sophisticated prismatic structure enables it to reflect most of the sun’s heat in the summer, yet allows increased penetration of solar heat in the winter.

  • Energy savings through effective heat screening
  • Bright, Glass-like look
  • Virtually unbreakable
  • Rigid sheet structure provides extra strength under wind and snow loads. To see sheet performance under loads, go to “Support / Wind Load Charts”.
  • Recommended Uses: Skylights, conservatories, solariums and verandas,interior applications as a functional/decorative element, atria, sports facilities, airports

Technical Specifications

Weight kg/m² (lb/ft²)3.0 (0.62)
Standard Width mm (inches)1050, 1200
Minimum Radius for Cold Bending Arches m (ft)2.8 (9′ 2″)
U-Value by ASTM C177 Watt/m²•ºC (Btu/h•ft²•ºF)2.3 (0.41)

Optical Specification

 ClearNGL
Light Transmission %, 90º to surface by ASTM D10037532
Shading Coefficient SC0.410.32
Solar Heat Gain Coefficient SHGC0.350.28
Solar Reflectance (R sol)0.4810.461
Visible Transmission (T vis)0.3450.191

  Selectogal (RFX) 16 mm [287KB] Get Adobe® Reader


Thermogal – Thermal Insulation, thicknesses 25, 32, 35, 40 mm

Thermal Insulation

Thermogal 25 – 40 mm

Combines highly effective thermal insulation with extra strength for low-pitch roofing.

  • Suitable for cold climates – extremely low U-Value
  • Save on heating energy costs
  • Bright, transparent look, large range of colours, shades and reflective coatings.
  • Covered by 10 Year Warranty for color, light transmission and strength
  • Can be cold-bent to recommended radii
  • Best insulation performance during cold winter nights
  • Rigid sheet structure provides extra strength under wind and snow loads. To see sheet performance under loads, go to “Support / Wind Load Charts” .
  • Recommended Uses: Low pitch coverings, Lean-to conservatories, Large span structures, Stadiums, Closed structures with interior climate control, Industrial windows

Technical Specifications

Sheet thickness (mm) 2532 3540
Structure
Weight kg/m 2 (lb/ft 2 )3.5 (0.30)3.3 (0.25)4.0 (0.24)4.2 (0.19)
Minimum cold bending radius mm (inch)4.37 (14.9″) 3.3 (0.25)6.1 (20″) –
U-Factor by ASTM C 177 W/m² • ºC1.7 (0.31)1.4 (0.25)1.36 (0.24)1.1 (0.19)
Light transmission
by ASTM D I 494 (%)
Clear797367 71
Ice54 5147
Primalite 18*15*
Silhouette Gold – 43 –
Silhouette Pearl – 45 – –
Spring – 52 – –
*by ASTM D-1003

  Thermogal 25-40 mm [347KB] Get Adobe® Reader


Triple-Clear – High Light Transmission, thicknesses 6, 8, 10 mm

Triple Clear

Triple Clear (PC-2 & PC-3) – 6, 8 and 10 mm

  • Specially manufactured with a clear tint appearance
  • Excellent thermal insulation
  • Highly flexible, yet virtually unbreakable
  • Anti-Fog system that prevents condensation build up, and falling droplets
  • Rigid sheet structure provides extra strength under wind and snow loads
  • Lightweight and easy to install
  • Advanced UV-protective coating safeguards sheet transparency and mechanical properties, even with exposure to extreme weather conditions
  • 10 Year warranty provided.
  • Specially manufactured with a clear tint appearance

Technical Properties:

Sheet Thickness6 mm 8 mm 10 mm
Structure
Max. Width (mm) 2100
Weight (g/m 2 )1300 1700 2000
U-Value (W/m 2 • O C ) 3.6 2.852.6
Light Transmission, %  (by ASTM-D1003) 80 77 76

Triple-Clip – Panels Roofing System, thickness 16 mm

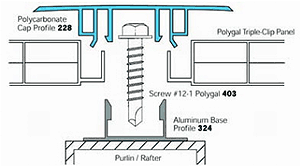

Triple – Clip Panel Glazing System (TCP)

Polygal’s 16mm (5/8″) Triple-Clip Panel Glazing System combines endless design possibilities with many important advantages:

  • Excellent thermal insulation
  • Highly flexible, yet virtually unbreakable
  • Lightweight and easy to install
  • Rigid sheet structure provides extra strength under wind and snow loads. To see sheet performance under loads, go to “Support / Wind Load Charts” .
  • Recommended Uses: Covering of medium span, vertical walls, D.I.Y.

Polygal Sheets feature a UV protective layer to protect against yellowing, and are covered by a 10 Year Warranty against breakage and yellowing.

Technical Specifications

Weight kg/m² (lb/ft²)2.7 (0.55)
Modular Width mm (inches)610 (2′)
Minimum Radius for Cold Bending Arches m (ft)4.0 (13′ 8″)
U-Value by ASTM C177 Watt/m²•ºC (Btu/h•ft²•ºF)2.3 (0.41)

Optical Specification :

ColorClear
Light Transmission %, 90º to surface by ASTM D100372
Shading Coefficient SC0.79
Solar Heat Gain Coefficient SHGC0.68
Solar Reflectance R sol0.223
Visible Transmission T vis0.723

SPECIAL LAYERED POLYCARBONATE SHEETS

PolyShade – High Shading Properties, sheets thicknesses available: 6, 8, 10, 16 mm

PolyShade Selective Layer

The PolyShade layer of polycarbonate structured sheets produces a special metallic shading effect. A perfect solution for hot climate areas. The PolyShade coating contains a special pigment that adds metallic lustre to the surface and provides an optimal level of solar radiation reflection to prevent overheating of a room. The PolyShade-coated sheets are manufactured with different colors: silver, metallic blue and metallic green; and of different thickness, ranging from 8 to 16 mm.

Innovative new technology uses aluminium powder to reflect away the entire solar spectrum range.

  • Effectively blocks solar heat
  • Extra-high Shading Coefficient, superior to other aluminium-coated sheets.
  • Silver metallic surface doesn’t distort interior colors, yet conceals dust
  • Excellent shading coefficient
  • Highly attractive metallic surface – only product of its kind which is suitable for hot climates
  • Rigid sheet structure provides extra strength under wind and snow loads. To see sheet performance under loads, go to “Support / Wind Load Charts”.
  • Recommended Uses: Transportation stations, coverings for open markets, parking enclosures, airports, internal partitions, exhibitions and displays.

Polygal PolyShade Sheets feature a UV protective layer to protect against yellowing, and are covered by a 10 Year Warranty against breakage and yellowing (6 mm and higher).

Technical Specifications :

StructureThickness
(mm)
Weight
(g/m 2 )
Standard
Width (mm)
Minimum radius
for cold bonding
arches (m)
U-Factor
ASTM G177
TNO (W/m 2 x 0 C )
Standard81500980
1050
1200
1220
1250
2100
1.43.3
1017001.753.0
Titan1627002.82.3
Standard101700980
1050
1200
2100
1.752.5
1627002.82.2
Titan Sky1625001050
1200
2.82.08

Optical Specification:

StructureThickness
(mm)
Shading
Coefficient
Light Transmission (%)byASTM D I003
Standard8-100.3318
1616

Primalite – Reflection of Infra Red Rays, sheets thicknesses available: 6, 8, 10, 16 mm

Primalite Selective Layer

Effectively Blocks Excess Heat Penetration into the Structure. The Result: More Light – Less Heat!

Primalite solar selective sheets decrease penetration of heat-transmitting near-infra-red solar energy, while allowing the visible light wavelengths to penetrate the panel

  • Energy savings through effective heat screening
  • Exclusive technology only offered by Polygal
  • Excellent light transmission and diffusion for pleasant, well-lit interiors, without glare.
  • Recommended Uses: Skylights, conservatories, solariums and verandas, atria, sports facilities, airports, commercial greenhouses, swimming pool enclosures.
  • Rigid sheet structure provides extra strength under wind and snow loads. To see sheet performance under loads, go to “Support / Wind Load Charts”.

Technical Specifications

StructureThickness
(mm)
Weight
(g/m²)
Standard
width
 (mm)
Minimum radius
for cold bending
arches (m)
U-Factor
by ASTM C177
TNO (W/m²•ºC)
Standard81500980
1050
1200
1220
1250
2100
1.43.3
1017001.753.0
1627002.82.3
Titan101700980
1050
1200
2100
1.752.5
1627002.82.2
Titan Sky1625001050
1200
2.82.1
Thermogal253500980
1200
2100
4.371.7
3238005.61.4
3540006.11.4

Optical Specification

StructureThickness (mm)Shading Coefficient Light Transmission (%)
 by ASTM D1003
Standard8 – 100.4545
160.3132
Titan160.2718
Thermogal250.3418
320.2815

Polycoolite – Supplies plants natural solar light, sheets thickness available: 8 mm

Polycoolite Selective Layer

Brings Proven Spectrum – Altering Technology to Garden Centers and Greenhouses.

Polycoolite Selective LayerPolycoolite Selective Layer

Polycoolite structured sheet is specifically designed to supply plants natural solar light needs for photosynthesis. It blocks the UV, supplies high blue and red reflects heat from the unused green. It reflects undesirable excess heat from the infrared range.

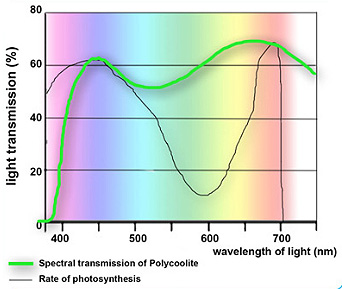

Spectral transmission of Polycoolite

  • specially designed for Grower/Retail operations = “Retail Heaven”
  • Reduced heat combined with high quantity of growing light (PAR)
  • Eliminates or reduces the need for shading
  • 100% diffusion results in low light intensity and reduced watering
  • Rigid sheet structure provides extra strength under wind and snow loads. To see sheet performance under loads, go to “Support / Wind Load Charts”.

Technical Specifications

Weight kg/m² (lb/ft²)1.5 (0.34)
Standard Width mm (inches)1830 (6′)
Minimum Radius for Cold Bending Arches m (ft)1.4 (4′ 7″)
U-Value by ASTM C177 Watt/m²•ºC (Btu/h•ft²•ºF)3.3 (0.60)

Optical Specification

Light Transmission %, 90º to surface by ASTM D100350
Shading Coefficient SC0.65
Solar Heat Gain Coefficient SHGC0.56
Solar Reflectance R sol0.295
Visible Transmission T vis0.496

 Polycoolite Selective Layer [PDF – 444KB] Get Adobe® Reader


Silhouette Gold/Pearl – Reflection of IRR, sheets thicknesses available: 8, 10, 16, 32 mm

Silhouette Selective Layer

Luxury You Can See

Silhouette -coated polycarbonate structured sheets are a new product line of Polygal. Silhouette is a special pigment coating giving a unique motherof – pearl lustre to the surface and having a selective effect, which makes it possible to control the warming-up inside an enclosed space on a hot summer day. The Silhouette-coated sheets are very glamorous and can embellish any building giving it an original appearance. The Silhouette-coated plates are manufactured with different colors: mother-of-pearl and golden and of different thickness, ranging from 8 mm to 40 mm.

Silhouette Selective LayerSilhouette Selective Layer

  • Energy savings through effective heat screening
  • Exclusive technology only offered by Polygal
  • Excellent light transmission and diffusion for pleasant, well-lit interiors, without glare.
  • Recommended Uses: Skylights, conservatories, solariums and verandas, atria, sports facilities, airports, commercial greenhouses, swimming pool enclosures.
  • Rigid sheet structure provides extra strength under wind and snow loads. To see sheet performance under loads, go to “Support / Wind Load Charts”.

Technical Specifications

Weight kg/m² (lb/ft²)1.5 (0.31)
Standard Width mm (inches)980, 1050, 1200, 1250, 2100
Minimum Radius for Cold Bending Arches m (ft)1.4 (4′ 7″)
U-Value by ASTM C177 Watt/m²•ºC (Btu/h•ft²•ºF)3.3 (0.60)

Optical Specifcations

Light Transmission %, 90º to surface by ASTM D100335
Shading Coefficient SC0.43
Solar Heat Gain Coefficient SHGC0.37
Solar Reflectance R sol0.466
Visible Transmission T vis0.331

Spring – Absorbtion of Infra Red Rays, sheets thicknesses available: 8, 32 mm

Spring

“Brings Nature in” – During summer & winter

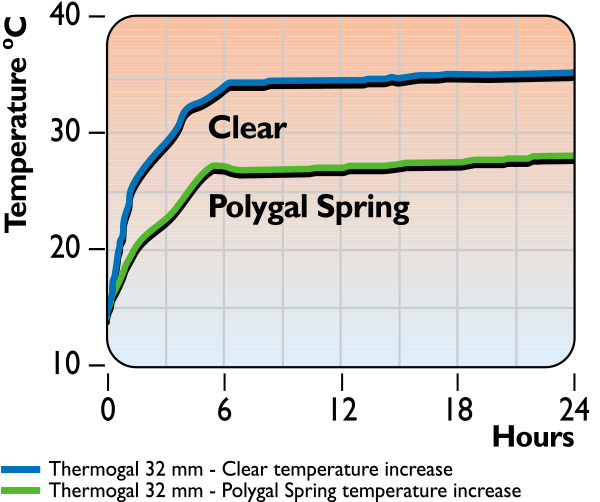

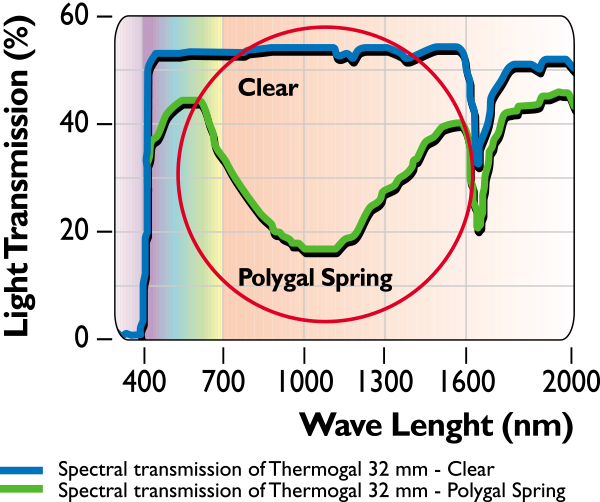

Summer – With a special co-extrusion layer on the external side of the sheet under the UV protective layer “Spring” blocks the invisible IR solar radiation & heat. Result = Lower temperatures (less heat enters the structure), but still allow maximum light coming in.

Winter – Due to its outstanding insulation properties, “Spring” sheet saves energy costs during winter time. Polygal Spring sheet means: All year thermal comfort, light & energy saving.

Spring sheet comes in two types: Clear appearance – Translucent Matte – To avoid dazzle


Spectral Solar Transmission of Polygal Spring vs ClearInside space heat structure covered in Polygal Spring Sheet compared with Clear sheet.
Light Transmission (%)

Polygal Spring provides Maximum absorbtion of solar near-infra-red radiation.

Temperature Graph

After trainsient period, Polygal Spring sheets maintain temperatures of 8 oC lower than other PC sheets (based on lab. simulation).

  Spring [444KB] Get Adobe® Reader


Rainbow – Decorative Layer, sheets thickness available: 8 mm

Rainbow

Polygal's Rainbow SheetsPolygal's Rainbow Sheets

Harmony in nature can be found in unique combinations of opposites – heat and cold, birth and death, cruelty and gentleness, sunshine and rain, and many more; almost everything has two contrasting sides. This is an integral part of nature, and it is exactly this beauty of nature that Polygal is able to offer you with its new product – Rainbow. Special optical affects in Polygal’s Rainbow sheets combine with the angle of the light to change the sheet color (e.g. from red to green), thus the Rainbow sheets by Polygal present a unique harmony that is both dynamic and varied.

Available in 8 mm thick sheets, Rainbow by Polygal is flexible, heat resistant,easy to install, and can be used for a variety of installations such as: bus stops and train stations, shopping malls, screens and partitions, roofing, stage design, display areas, exhibitions and many more.

POLYGAL GLAZING SYSTEMS AND ACCESSORIES

Polygal offers its own proprietary Aluminium and Polycarbonate Glazing Systems to ensure perfectly sealed, attractive surfaces in constructions using Polygal structured sheets.

Polycarbonate Connecting Profiles

Polycarbonate Connection Profiles

Polygal’s interconnecting Polycarbonate profiles connect sheets and cover structural connections and allow the covering of large areas, especially semi-transparent roofing, without obstructing the incoming light at the connecting points. The profiles do not add structural strength; they are flush with the sheet and can be bent at the minimal radius permitted by the sheet. Profiles are protected from UV damage by a special protective layer over external surfaces.

  • Unobstructed light through the sheet connections.
  • Excellent sealing properties in roofs and walls inclined over 10%
  • Light, flexible, inexpensive and easy to install
  • Available in unlimited lengths
  • Available in Bronze, Opal, White and Clear colors

6-16 Aluminum Glazing Systems

6-16 Aluminium Glazing System

Polygal’s 6-16 Glazing System is specially designed for use in glazing with 6-16 Polycarbonate structured sheets, in urban applications such as covered walkways, entrance-ways, parking spaces, bus stations and other, similar applications. The 6-16 mm Glazing System has a rabbet depth of 20 mm which enhances its fastening properties and prevents glazing failures due to wind and snow loads or thermal expansion.

The Base Profile (No. 336) fastens the system to the structure and acts as a glazing support for the sheets.The Cap Profile (No. 335) holds the sheets in their place.

The EPDM gasket (No. 504) seals the system completely and reduces thermal expansion noise.Fastening Screws of various length and their sealing washers (No. 441 – 443) fasten the profile cap to the base. The Edge Profiles (No. 311-313, 327) ensure a ventilation gap, and drainage holes should be drilled

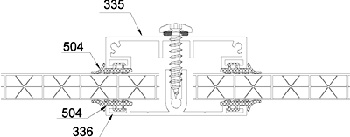

6-16 Aluminium Glazing System

  Full Information in 6-16 Glazing System Installation Instructions [681KB] Get Adobe® Reader


6-35 Aluminum Glazing System

6-35 aluminum glazing system

Polygal’s 6-35 Glazing System is a large-span clamping system specially developed for glazing applications using 6-35 mm thick Polycarbonate structured sheets. Sheets are mounted on the system’s load-bearing elements during construction of transparent and semi-transparent roofing.

The system’s large rabbet depth (30 mm overlap) makes sheet fastening easier, and prevents glazing failures due to wind and snow loads or thermal expansion.

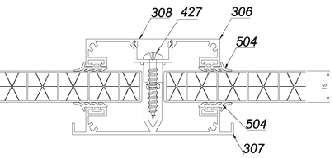

6-35 Aluminum Glazing System diaphragm

For humidity conditions, the Base Profile (No. 307) is designed with drainage channels to collect condensation droplets from the interior surface of the Polycarbonate sheets. Profile No. 310 provides support against the purlin, perpendicular to the direction of the sheet ribs, and channels the condensation droplets towards the rafters and the lower channels of Profile No. 307. To Ensure the dropper flow of the droplets from Profile No. 310 to Profile No. 307, two 90º cuts should be made. Profile No. 308 is designed to cover the screw attachment area and is easily installed using a rubber mallet. The Edge Profile (No. 311 – 314) provides a ventilation gap. Drainage holes should be drilled.


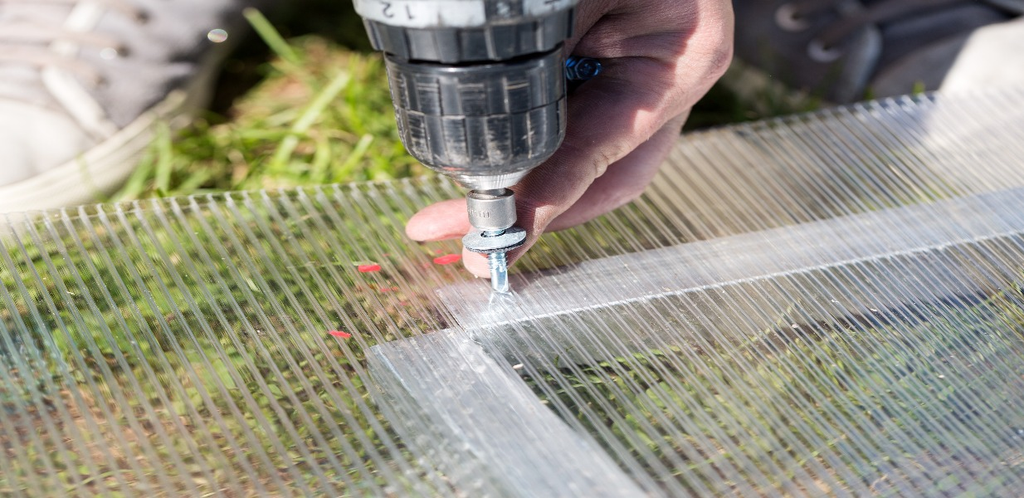

Polygal Accessories

6-35 aluminum glazing system

Polygal Original Accessories – for fast, convenient, easy and safe implementation of architectural designs using Polygal Structural Panels.

Polygal Original Accessories are supplied together with Polygal structured sheets, so you can get right to work – no unnecessary delays while you wait for glazing system parts to arrive.

Polygal Original Accessories:

  • Are specifically designed for use with Polygal structured sheets.
  • Ensure proper system sealing and load-bearing characteristics.
  • Help you get the job done quickly and safely.

Polygal assumes that roofing contractors who purchase their products are knowledgeable and experienced in roofing installation and glazing systems. Improper use of accessories, which may lead to construction errors and possible legal consequences, shall be the responsibility of the installer and the various roofing contractors involved.

Polygal Glazing Screws Catalogue

 NoScrewDescriptionUseDimensionsFor Sheet thickness
1412Self Drilling ScrewSelf Drilling Screw*base prof. to still construction1/4 x 1 1/4all
2400Self Drilling ScrewSelf Drilling Screw*sheets to construction (with 473)

1/4 x 2

all
3421Wood ScrewWood Screwbase prof. to wood construction

1/4 x 1 1/4

all
4422Wood ScrewWood Screwsheets to construction (with 473)

1/4 x 2

all
5425Pan PhilipsPan Philips6-36 system profiles connection

#12 x 3/4

6-10 mm
6426Pan PhilipsPan Philips6-36 system profiles connection

#12 x 1

16mm
7427Pan PhilipsPan Philips6-36 system profiles connection

#12 x 1 1/4

16-25 mm
8428Pan PhilipsPan Philips6-36 system profiles connection

#12 x 1 1/2

32-35 mm
9424Self Drilling ScrewSelf Drilling Screwcap profile trim connection

#8 x 1/2

all
10441Torx CapTorx Cap6-16 system profiles connection

#12 x 7/8

8 mm
11442Torx CapTorx Cap6-16 system profiles connection

#12 x 1

10 mm
12443

Torx Cap

Torx Cap6-16 system profiles connection#12 x 1 1/416 mm

* Self drilling screw specially coated for condensation environments. suitable for greenhouse and swimming pool coverings.

Gaskets and Sealing Tapes



No.SealDescriptionFor Sheet Thickness
501EPDM spacer 2mmEPDM spacer 2mm8
502EPDM spacer 4mm10.25EPDM spacer 4mm10.2510, 25
503EPDM spacer 10mm16EPDM spacer 10mm1616, 32
504EPDM glazingall sheets
505PaO80 inside spacer for greenhouseall sheets
506Button fixingButton fixing6
516Button fixing10
517Button fixing16
519O-RingO-ringall sheets
520HCP Profile trimHCP Profile trim6
521HCP Profile trimHCP Profile trim8, 10
473EPDM + INOX fixing domeEPDM + INOX fixing domeall sheets
507 Polygal Siliconeall sheets
508Antidust tapeAntidust tape4, 6, 8
509Antidust tape10, 16
510Antidust tape25
512Solid tapeSolid tape4, 6, 8
513Solid tape10, 16
514Solid tape

25

GrowerTalks

Polygal Inc.

Polygal Inc. announces Flashband, an inexpensive way to seal greenhouse seams without infiltration. Flashband, a self-adhesive, flexible and paintable bituminous-based tape replaces silicon. Used for years in European greenhouses, it seals seams in vents, gables, roofs and end walls. It’s easy to use: Just cut the desired amount of tape and apply. Flashband is compatible with glass, metal and polycarbonate. Contact Polygal, Inc., Charlotte, North Carolina; Tel: (800) 537-0095; www.polygal.com
